Name: Mini Bike Spy GPS Tracking Device PCB PCBA Solution Magnetic Long Standby Time With Battery 5000mAh 4g Lte Gps Mini tracker
Brand: Shenzhen Feifan Brother Electronics Co., Ltd.
SKU: V6C
Availability: InStock

Home Products Top Sale Products

Mini Bike Spy GPS Tracking Device PCB PCBA Solution Magnetic Long Standby Time With Battery 5000mAh 4g Lte Gps Mini tracker

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	NULL
Model Number:	V6C

Contact Now

Detailed Product Description

Communication:	Cellular	Type:	Mini, Wireless, Magnetic, Wireless
Network:	GSM, GPS, GPRS, 4G LTE, 4G, 2g, 2g Gsm, 4G CAT1+2G Networks	Battery:	5000mAh, 5000mAh (1500/2500mAh For Options)
Placement:	Portable, Windshield, Dashboard	Positioning Mode:	GSM, GPS, GPRS, LBS, AGPS, Beidou, GLONASS, Real-Time Positioning, Emergency Positioning, Power Saving Mode
Track View:	PC, IOS APP, SMS Coordinate, Android APP	Battery Life (Hour):	>96H
Function:	Waterproof, ANTI-SHOCK, Fast Charging, Street View, Over-Speed Warning, Wheel Path Playback, Geofence, Real-time Tracking	Data Storage:	Cloud Storage
Warranty:	1 Year, 12 Months	Use:	Motorcycle, Other, Automotive, HAND HELD, BICYCLES, GPS Tracker
Button Battery:	NO	Connection:	3G/4G Sim Card
Fixed Method:	Magnetic Fixation	Power Source:	Battery Powered
View Angle:	360° Bird View	Gps Feature:	Remote Control
Location Mode:	GPS+BDS+LBS	Weight:	132g
DIMENSION:	795421mm	Usage:	Vehicle Safety
4G Module:	SIMCOM

Product Description

Mini Bike Spy GPS Tracking Device PCB PCBA Board Solution OEM ODM Magnetic Long Standby Time with Battery 5000mAh 4g lte gps mini tracker

Superb Features:

# Works on 4G CAT1 + 2G GSM networks.
# Precise positioning with accuracy of 5 ~15 meters.
# GPS+BDS+LBS location modes.
# Super long standby time.
# Powerful magnet, free installation.
# Waterproof IP65.
# Tracked by SMS, mobile APP, web platform.

Main Functions:
1. Vibration alarm.

2. Over speed alarm.
3. Geo-fence.
4. Tamper alarm.
5. Low power alarm.

Work modes:

Normal mode: Upload position every 30 seconds, enter into standby status if static lasts more than 3 minutes, and it will upload heartbeat pack every 5 minutes to keep connection with server, vibration will wake up the device.

Power saving mode: Upload position every 30 seconds, enter into sleep status if static lasts more than 3 minutes, disconnect the server and no data transmission to save power, vibration will wake up the device.

Smart mode: Set a fix time to work and upload position, and enter into sleep status during other time, vibration cannot wake up the device.

Application:
For vehicles, car, truck, trailer, motorcycle, electronic bicycle, bus, or personal use, etc.

Free APP and Platform

Free mobile APP: AKSH

Free tracking web: en.aika168.com

Demo account: 888

Password: 123456

Specification

Work Voltage	DC 3.4V - 4.5V
Work Current	4V/ Average 355mA
Sleep Current	4V/ Average 60uA
Internal Battery Capacity	5000mAh (3.7V Polymer battery)
Work Temp	-20℃ - 75℃
Work Humidity	10%-85% non-condensing
4G LTE Module	SIMCOM 7670SA
Frequency bands SIMCOM 7670SA	LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM:B2/B3/B5/B8
Frequency bands SIMCOM 7670E	LTE-FDD:B1/B3/B5/B7/B8/B20 GSM:B3/B8
GPS chipset	ZKMicro AT6558D
Sensitivity (tracking)	-162DBM
Frequency	GPS: L1: 1575.42±1.023MHz BD: B1: 1561.098±2.046MHz
TTFF (open sky)	Cold Start: average 32S; Hot Start: average 1S

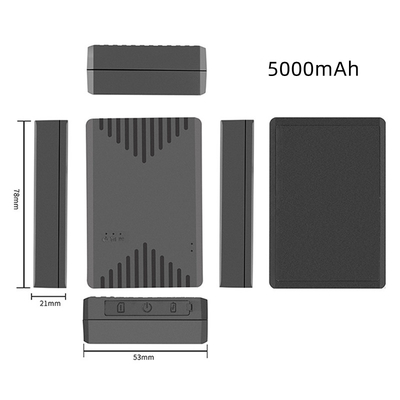

Dimension	78 mm * 53mm * 21 mm
Unit Weight	32g
Suitable for	SIMCOM 7670SA suitable for North and South America countries. SIMCOM 7670E suitable for EU, Southeast Asia, Africa countries.

PLEASE NOTE

Payment Term:
* We accept payment via Alipay, West union, T/T, all major credit cards are accepted through secure payment processor ESCROW.
* Payment must be made within 3 days of Order.
* S&H will be determined based upon the ship to address.
* PLEASE NOTE: S&H DOES NOT INCLUDE DUTIES, LOCAL TAXES OR ANY OTHER IMPORTATION FEES.
* Please list your special requests (size, color, packages, value of declaration, etc.)

Shipping Term:
* Orders processed within 24-48 hours of payment verification.
* SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
* If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction.

Return Policy:
* You have 7 days to contact us and 10 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS!
* All returned items MUST BE in the original packaging and you MUST PROVIDE us specific reason for the return.
* We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction. OR, you may choose to have a replacement
* Return shipping is to be paid by the Buyer.

Guarantee:
* 12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt).
Accessories come with a 3-month warranty.
* Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.
* You agree to all of the above-listed policies upon ordering on Alibaba!

Feedback:
* We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
* It is impossible to address issues if we do not know about them!
* If you have any question please contact us, we can reply you within 8 hours.

Packing & Delivery

Selling Unit: Single item

Single package size: 12.5X8.5X5cm

Single gross weight: 1kg

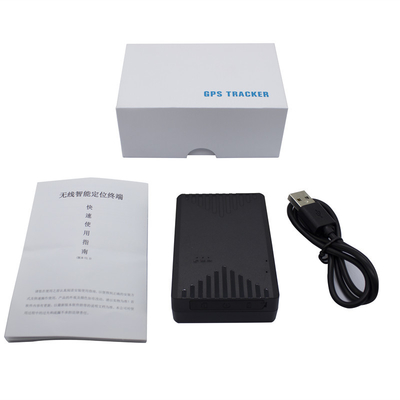

Package Type: Standard accessories,
1 x Tracker
1 x Charging cable
1 x USB cable for get hyper terminal or upgrade firmware

1 x user manual
1 x gift box

DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
