Name: Google Map Real Time Tracking Cut Off Fuel Relay Hidden Vehicle Locator Motorcycle GPS Tracking Device Car 4G GPS Tracker
Brand: Shenzhen Feifan Brother Electronics Co., Ltd.
SKU: V3
Availability: InStock

Home Products Top Sale Products

Google Map Real Time Tracking Cut Off Fuel Relay Hidden Vehicle Locator Motorcycle GPS Tracking Device Car 4G GPS Tracker

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	NULL
Model Number:	V3

Contact Now

Detailed Product Description

Communication:	Cellular	Type:	Mini, Build-in
Network:	GSM, GPS, GPRS, 4G, 2g, 2g Gsm, 4G CAT1+2G Networks	Battery:	60mAh, 60mAh
Placement:	Windshield, Dashboard	Positioning Mode:	GSM, GPS, GPRS, LBS, AGPS, Beidou, GLONASS, Real-Time Positioning, Emergency Positioning, Power Saving Mode
Track View:	PC, IOS APP, SMS Coordinate, Android APP	Battery Life (Hour):	12~24H
Function:	ANTI-SHOCK, Fast Charging, Street View, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence, Accurate Position, Remote Cut Off, Mic, Sos	Data Storage:	Cloud Storage
Warranty:	1 Year, 12 Months	Use:	Motorcycle, Other, Automotive
Button Battery:	NO	Connection:	3G/4G Sim Card
Fixed Method:	Others	Power Source:	Battery Powered
View Angle:	360° Bird View	Location Mode:	GPS+BDS+LBs
Weight:	40g	DIMENSION:	79mm * 33mm * 16mm
Usage:	For Vehicle	Free APP:	AKSH
Color:	Black

Product Description

Professional Auto Truck Vehicle Taxi Motorcycle Remote Cut Off Engine Small Tracking Location Device j16 Car 4G GPS Tracker PCB PCBA Solutions OEM ODM

Standard: 4pin wire

Support: 3pin wire, 8pin wire for options, please contact us directly if you want 3pin or 8pin

Superb Features:
# Precise positioning with accuracy of 5 meters.
# GPS+BDS location mode.

# Wide work voltage: 9~95V.
# Tracked by: SMS, Mobile APP, Web Platform.

Main Functions:
1. Acc detection--ignition status.

2. DC detection.

3. Remote cut off--fuel/power (engine stop).

4. Power off alarm.
5. Over speed alarm.

6. Mileage statistics.
7. Emergency SOS button. (Optional)

8. Door detection with door sensor. (Optional)

Application:
Suitable for vehicle models, like car, truck, motorcycle, electronic bicycle, bus, etc.

Working Logic:

After installation, the device enters the normal working state after the yellow and blue lights are always on.

Stationary shutdown state: ACC off, the device will upload a data every 5 minutes.
Motion ignition status: ACC on, device will upload one data every 20 seconds.

Power failure alarm: After the device is connected to the power supply, the device will judge the access to the power supply, and when the device is disconnected from the power supply for more than 3 seconds, the power failure alarm will be triggered and upload to the server.

SOS alarm: With an external SOS button, press and hold the button for 3 seconds to trigger the alarm, after triggering the alarm, the device will send an emergency alert to the server. If users set SOS family phone numbers, the device will send SOS SMS to the main number and call family phone numbers.

Over-speed alarm: set the over-speed alarm threshold, when the speed exceeds the value, will trigger the over-speed alarm, and uploads to the server.

Features:

# Support multiple alarms: power failure alarm, over-speed alarm, vibration alarm, low voltage alarm, etc.

# Support the function of cutting off the oil circuit/circuit of the monitoring object, and realize the function of cutting off
oil and electricity.

# Support Geo-fence, users can set virtual electronic fence through the platform/APP, and when the device enters or exits the fence, it can be recognized by the platform and issue an alarm.

# Alarm SMS/phone call can be sent to the guardian number in the event of an alarm, and the alarm will be uploaded to the platform at the same time.

# We adopted industrial-grade high-stability GPRS module from well-known manufacturers, built-in GSM high-sensitivity antenna, supports TCP/IP data transmission, and supports domain name/IP address to connect to the server.

# Built-in large-capacity memory chip, support data storage when in offline state, supplementary transmission of blind zone data; When the vehicle is in a place where the wireless signal is weak or the interference is serious, the device will store the data of the vehicle in FLASH temporarily, and when the wireless signal returns to normal, it can transmit these data, won’t miss any data.

# Built-in 3-axis acceleration sensor, integrated with accurate acceleration algorithm, real-time acquisition of vehicle data and other vehicle condition judgment.

# High-sensitivity GPS/BDS dual-star positioning module, anti-interference ceramic antenna, to achieve more stable signal
searching, support AGPS fast positioning tracking, synchronous timing.

# In sleep mode, it supports automatic reporting messages such as battery low voltage monitoring alarm and abnormal vibration alarm for vehicle starting, flame-out, and sleep.

# Support online remote upgrade and remote configuration of product parameters.

# Low-power energy-saving mode, accurate judgment of car ignition and flame-out status, intelligent sleep and wake-up mechanism, can reduce the average power consumption of the entire system.

Specification:

Model No.:	V3 (4pin hardwire)
Size:	79mm * 33mm * 16mm
N.W./G.W.:	40g
Material:	PC
4G Module:	SIMCOM 7670SA
Sim Car Slot:	Nano SIM card
Frequency Bands:	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM/2G: 850/900/1800/1900MHz
Location Mode:	GPS+BDS+LBS
GPS Location Precision:	5-15m
LBS Location Precision:	100-1000m
Battery:	Built-in 60mAh polymer battery
Remark	Stanard 4 cables support engine stop relay, Standard 8 cables support engine stop relay+mic+SOS

Free APP and Platform

Free mobile APP: AKSH

Free tracking web: en.aika168.com

Demo account: 888

Password: 123456

Packing & Delivery

Selling Unit: Single item

Single package size: 8X8X7.5cm

Single gross weight: 0.5kgs

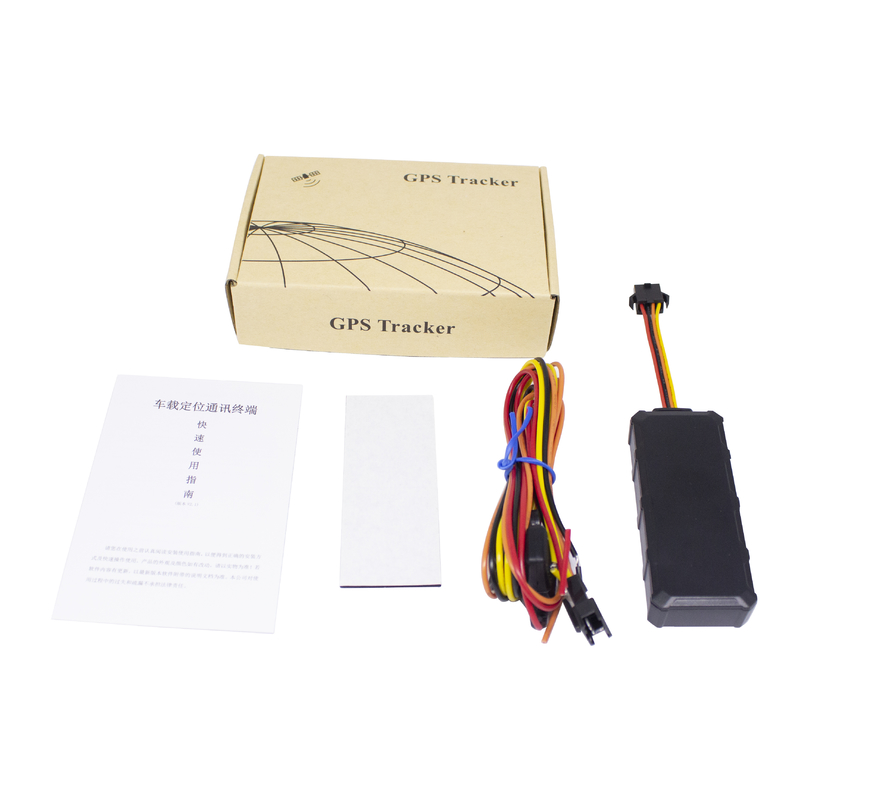

Package Type: Standard accessories,
1 x GPS Tracker
1 x Harness

1 x User manual

1 x Gift box

DHL/FedEx/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
